Hayward Universal H-Series Low NOx Induced Draft Pool & Spa Heater | 150,000 BTU | Natural Gas | W3H150FDN Parts

Back to Product

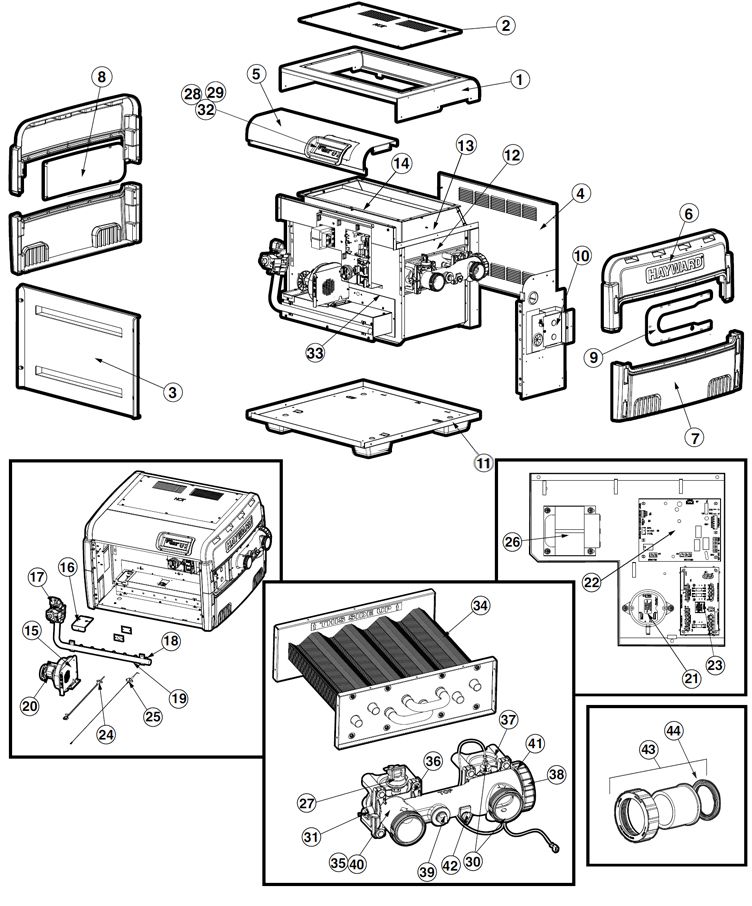

Hayward Universal H-Series Low NOx Induced Draft Pool & Spa Heater | 150,000 BTU | Natural Gas | W3H150FDN Parts Schematic

6

FDXLUEC1930 FD UPPER END CAP

7

FDXLLEC1930 FD LOWER END CAP

8

FDXLLTP1930 FD LEFT TRIM PANEL KIT

9

FDXLRTP1930 FD RIGHT TRIM PANEL KIT

10

FDXLLCB1930 FD LEFT CONNECTION BOX KIT

10

FDXLRCB1930 FD RIGHT CONNECTION BOX KIT

11

Hayward Base Leg Kit FD | FDXLPBL1930

17

Gas Valve Nat Fd FDXLGSV0001

17

FDXLGSV0002 FD GAS VALVE LP

18

FDXLBON1930 FD BURNER ORIFICE NAT KIT

18

FDXLBOP1930 FD BURNER ORIFICE LP KIT

19

FDXLMAN1150 GAS MANIFOLD KIT H150FD

20

FDXLBWR1930 FD COMBUSTION BLOWER KIT

21

FD Blower Vacuum Switch FDXLBVS1930

22

Hayward Integrated Control Circuit Board | FD Models | FDXLICB1930

23

Hayward Field Heater Wiring Panel Replacement Kit | FD Models | FDXLFWP1930

24

Hayward Heater Ignitor Kit | FD Models | FDXLIGN1930

25

Hayward Flame Sensor for H-Series Low NOx Model Heaters | IDXLFLS1930

26

HAYWARD IDXL2TRF1930 TRANSFORMER 120/240V-24VAC

27

Hayward Heater Water Pressure Switch FD Models | FDXLWPS1930

28

Hayward Heater Display Board H-Series Low NOx Models | IDXL2DB1930

29

Hayward Bezel & Keypad Assembly Kit | FD Models | FDXLBKP1930

29

FDXLBKP1931 FD-CAL BEZEL & KEYPAD ASSY KIT

30

Hayward High Limit Kit FD Models | FDXLHLI1930

31

Hayward Heater Thermistor FD Models | FDXLTER1930

32

Hayward Bezel Top Gasket Kit FD Models | FDXLGSK1932

33

FDXLGSK1934 FD CC FRONT/AIR BOX GASKET KIT

34

FDXLHXA1150 HEAT EXCHANGER ASSY H150FD

35

Headerd Assy FD Heaters FDXLFHA1930

36

FDXLHDW1930 FD HEADER HARDWARE KIT

37

FDXLHMB1930 FD HEADER MOUNTING BASE KIT

38

FDXLBPK1930 FD BYPASS CARTRIDGE KIT

39

HAYWARD CHXPLG1930 DRAIN PLUG 3/4" NPT BRASS

40

Headerd Assy FD Heaters FDXLFHA1930

42

HAYWARD SPX4000FG DRAIN PLUG W/GASKET

43

Hayward Union Connector Kit SPX3200UNKIT

44

Tristar Gasket Union T-Seal 50 Duro EPDM | SPX3200UG

Hayward FD Heater Burner Kit | FDXLBRN1930

Tristar Gasket Union T-Seal 50 Duro EPDM | SPX3200UG

FDXLFSK1930 FD FUSE SERVICE KIT

FDXLCBC1930 FD CONTROL BOX COVER ASSY KIT

FDXLGSK1930 FD GASKET KIT-AIR SIDE ALL

FDXLGSK1931 FD GASKET KIT-EXHAUST SIDE ALL

FDXLGSK1933 FD RETURN SIDE INSULATION KIT

FDXLPLG1930 FD 1/8" NPT BRASS PLUG

FDXLVPS1930 FD PRESSURE SWITCH KIT- VENT

IDXLTMB1931 TERMINAL BLOCK - 5 POLE

Hayward Positive Pressure Horizontal Indoor Vent Adapter Kit for H150 Universal Heaters UHXPOSHZ11506

FDXLTDK1930 FD HURRICANE TIE DOWN KIT

FDXLWHA0001 FD WIRING HARNESS ASSY KIT

Hayward Negative Pressure Vertical Indoor Vent Adapter Kit for H150 Universal Heaters UHXNEGVT11501

FDXLWHA1930 FD WIRING HARNESS COMPLETE

FDXLCNK0001 CONVERSION KIT NAT TO LP

FDXLCNK0002 CONVERSION KIT LP TO NAT
