Pentair MasterTemp Low NOx Pool & Spa Heater - Dual Electronic Ignition - Propane - 200000 BTU - 460731 Parts

Back to Product

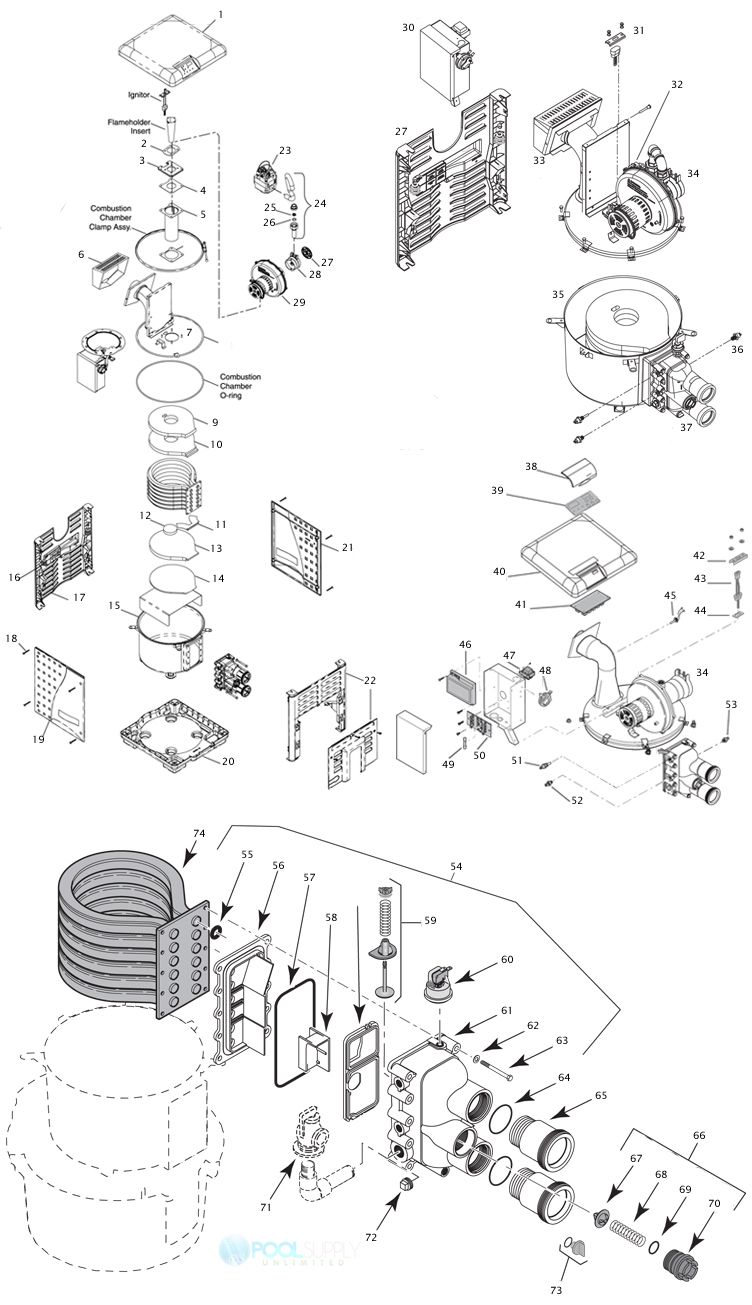

Pentair MasterTemp Low NOx Pool & Spa Heater - Dual Electronic Ignition - Propane - 200000 BTU - 460731 Parts Schematic

6

PENTAIR 42002-0005S METAL VENT COVER KIT

7

PENTAIR 42001-0214S COMBUSTION CHAMBER COVER KIT

15

Pentair MasterTemp & Sta-Rite Max-E-Therm Tub Prior Jan 2009 | 42001-0200S

17

Pentair MasterTemp Heater Side Panel | Manifold Side | 42002-0032Z

20

Pentair MasterTemp Heater Bottom | 42002-0031Z

21

Pentair MasterTemp Heater Side Panel | Flue Stack Side | 42002-0039Z

22

Pentair Master Temp Side Panel | Flue Stack Side | 42002-0033Z

23

Pentair Combination Gas Control Valve Kit | 42001-0051S

27

PENTAIR 77707-0111 AIR ORIFICE KIT SR200

29

Pentair MasterTemp 200 or 175 Natural Gas & Sta-Rite Max-E-Therm 200 Natural Gas Heater Blower Kit | 77707-0251

29

PENTAIR 77707-0254 BLOWER KIT LP SR200

39

Pentair MasterTemp Membrane Pad Kit | 472610Z

41

Pentair Sta-Rite MasterTemp & Max-E-Therm Control Board Circuit Board Kit NG & LP | 42002-0007S

43

Pentair Sta-Rite MasterTemp & Max-E-Therm Igniter with Gasket Kit | 77707-0054

45

Pentair Sta-Rite MasterTemp & Max-E-Therm Stack Flue Sensor | 42002-0024S

46

Pentair MasterTemp & Sta-Rite Max-E-Therm Ignition Control Module NG & LP | 42001-0052S

47

Pentair MasterTemp & Sta-Rite Max-E-Therm Heater Dual Voltage Transformer Kit | 42001-0107S

48

Pentair MasterTemp & Sta-Rite Max-E-Therm Air Flow Switch | 42001-0061S

49

PENTAIR 32850-0099 TERMINAL BOARD FUSE

50

PENTAIR 42001-0056S TERMINAL BOARD MAX-E-THERM

51

Pentair Sta-Rite Thermistor Temperature Sensor Max-E-Therm & MasterTemp | 42001-0053S

52

Pentair MasterTemp & Sta-Rite Max-E-Therm High Limit Switch | 42001-0063S

53

Pentair MasterTemp & Sta-Rite Max-E-Therm Air Gas Shutoff (AGS) Switch | 42002-0025S

54

Pentair MasterTemp & Sta-Rite Max-E-Therm Heater Manifold Assembly 175NA 175LP 200NA 200LP Models | 77707-0014

55

PENTAIR 77707-0117 TUBESHEET O-RING KIT 6 SR200

59

Pentair MasterTemp & Sta-Rite Max-E-Therm Manifold Bypass Valve Kit | 77707-0001

60

Pentair MasterTemp & Sta-Rite Max-E-Therm Water Pressure Switch | 42001-0060S

65

Pentair MasterTemp & Sta-Rite Max-E-Therm Connector Tube Kit | 77707-0017

66

Pentair MasterTemp & Sta-Rite Max-E-Therm Thermal Regulator Kit | 77707-0010

67

Pentair Sta-Rite MasterTemp and Max-E-Therm Thermal Regulator with clip | 38000-0007S

69

PENTAIR 35505-1313 O-RING #2-326 UNITROL

71

Pentair Pressure Relief Valve Kit | 473715Z

74

Pentair MasterTemp & Sta-Rite Max-E-Therm Tube Sheet Coil Assembly Kit | Models 200NA & 200LP | Prior to 1-12-09 | 77707-0232

74

Pentair MasterTemp & Sta-Rite Max-E-Therm Tube Sheet Coil Assembly Kit | Models 175NA, 175P, 200NA, 200LP | After 1-12-09 | 474058

Pentair Pump/Htr 2" Union Half x 2" Slip (2 pack) | PKG 188 PKG 188Z

PENTAIR 77707-0120 O-RING KIT MANIFOLD/TUBE/COIL

PENTAIR 42001-0214S COMBUSTION CHAMBER COVER KIT

PENTAIR 42001-0104S WIRING HARNESS DUAL VOLTAGE

PENTAIR 472648Z PLUG KIT BYPASS ACCESS

PENTAIR 460924 REGULATOR KIT

PENTAIR 460923 VLV KIT BYPASS

PENTAIR 77707-0431 ORIFICE KIT NG SR200

PENTAIR 77707-0461 ORIFICE KIT LP SR200

PENTAIR 77707-0011 ADAPTER PLATE GASKET KIT

PENTAIR 77707-0202 FLAMEHOLDER KIT 200K BTU

Pentair MasterTemp & Sta-Rite Max-E-Therm Heater Insulation Kit | 77707-0008

PENTAIR 42001-0105S VOLT SELECTOR PLUG KIT

Pentair MasterTemp & Sta-Rite Max-E-Therm Gas Conversion Kit | Natural Gas to Propane 200K BTU | New Style | 77707-1461

Pentair MasterTemp & Sta-Rite Max-E-Therm Gas Conversion Kit | Propane to Natural Gas | 200K BTU | New Style | 77707-1431
