Pentair MasterTemp Low NOx Pool & Spa Heater - Dual Electronic Ignition - Propane - 250000 BTU - EC-462027 Parts

Back to Product

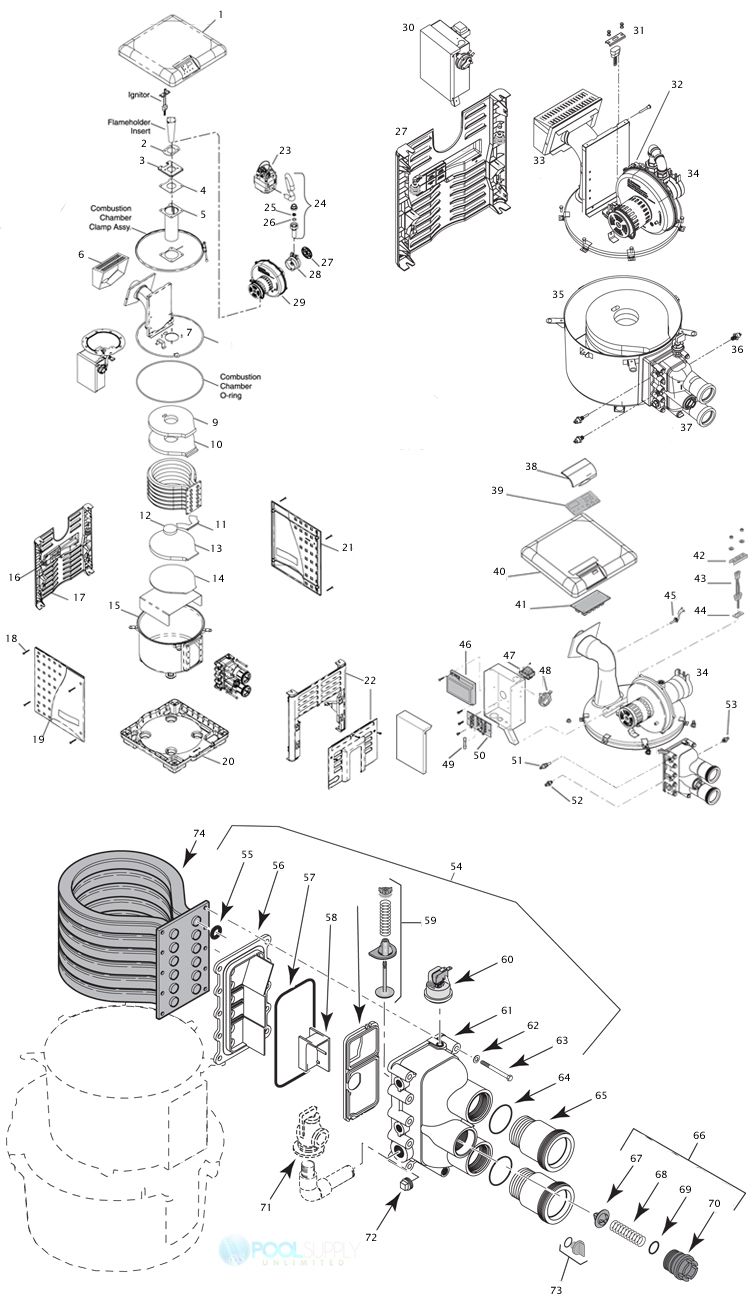

Pentair MasterTemp Low NOx Pool & Spa Heater - Dual Electronic Ignition - Propane - 250000 BTU - EC-462027 Parts Schematic

6

PENTAIR 42002-0005S METAL VENT COVER KIT

7

PENTAIR 42001-0214S COMBUSTION CHAMBER COVER KIT

15

Pentair MasterTemp & Sta-Rite Max-E-Therm Tub Prior Jan 2009 | 42001-0200S

17

Pentair MasterTemp Heater Side Panel | Manifold Side | 42002-0032Z

19

Pentair MasterTemp Heater Side Panel | Flue Stack Side | 42002-0039Z

20

Pentair MasterTemp Heater Bottom | 42002-0031Z

22

Pentair Master Temp Side Panel | Flue Stack Side | 42002-0033Z

23

Pentair Combination Gas Control Valve Kit | 42001-0051S

27

PENTAIR 460745 AIR ORIFICE KIT 250BTU

29

PENTAIR 460743 KIT COMBUSTION BLWR 250K NAT

29

PENTAIR 460744 KIT COMBUSTION BLWR 250K LP

39

Pentair MasterTemp Membrane Pad Kit | 472610Z

41

Pentair Sta-Rite MasterTemp & Max-E-Therm Control Board Circuit Board Kit NG & LP | 42002-0007S

43

Pentair Sta-Rite MasterTemp & Max-E-Therm Igniter with Gasket Kit | 77707-0054

45

Pentair Sta-Rite MasterTemp & Max-E-Therm Stack Flue Sensor | 42002-0024S

46

Pentair MasterTemp & Sta-Rite Max-E-Therm Ignition Control Module NG & LP | 42001-0052S

47

Pentair MasterTemp & Sta-Rite Max-E-Therm Heater Dual Voltage Transformer Kit | 42001-0107S

48

Pentair MasterTemp & Sta-Rite Max-E-Therm Air Flow Switch | 42001-0061S

49

PENTAIR 32850-0099 TERMINAL BOARD FUSE

50

PENTAIR 42001-0056S TERMINAL BOARD MAX-E-THERM

51

Pentair Sta-Rite Thermistor Temperature Sensor Max-E-Therm & MasterTemp | 42001-0053S

52

Pentair MasterTemp & Sta-Rite Max-E-Therm High Limit Switch | 42001-0063S

53

Pentair MasterTemp & Sta-Rite Max-E-Therm Air Gas Shutoff (AGS) Switch | 42002-0025S

54

Pentair MasterTemp Heater Manifold Assembly 250NA 250LP Models | 460748

59

Pentair MasterTemp & Sta-Rite Max-E-Therm Manifold Bypass Valve Kit | 77707-0001

60

Pentair MasterTemp & Sta-Rite Max-E-Therm Water Pressure Switch | 42001-0060S

65

Pentair MasterTemp & Sta-Rite Max-E-Therm Connector Tube Kit | 77707-0017

66

Pentair MasterTemp & Sta-Rite Max-E-Therm Thermal Regulator Kit | 77707-0010

67

Pentair Sta-Rite MasterTemp and Max-E-Therm Thermal Regulator with clip | 38000-0007S

69

PENTAIR 35505-1313 O-RING #2-326 UNITROL

71

Pentair Pressure Relief Valve Kit | 473715Z

73

Pentair Drain Plug Assembly .25" NPT | U178-920P U178-920PZ

74

Pentair MasterTemp Tube Sheet Coil Assembly Kit | Models 250NA, 250LP | After 1-12-09 | 474059

74

Pentair MasterTemp Tube Sheet Coil Assembly Kit | Models 250NA & 250LP | Prior to 1-12-09 | 460747

Pentair MasterTemp Gas Conversion Kit | Natural Gas to Propane 250K BTU | New Style | 460741

Pentair MasterTemp & Sta-Rite Max-E-Therm Heater Insulation Kit | 77707-0008

Pentair Pump/Htr 2" Union Half x 2" Slip (2 pack) | PKG 188 PKG 188Z

PENTAIR 42001-0104S WIRING HARNESS DUAL VOLTAGE

PENTAIR 42001-0105S VOLT SELECTOR PLUG KIT

PENTAIR 42001-0214S COMBUSTION CHAMBER COVER KIT

PENTAIR 460739 KIT GAS ORIFICE 250K NA

PENTAIR 460740 KIT GAS ORIFICE 250K LP

PENTAIR 77707-0120 O-RING KIT MANIFOLD/TUBE/COIL

PENTAIR 472648Z PLUG KIT BYPASS ACCESS

PENTAIR 460923 VLV KIT BYPASS

PENTAIR 460924 REGULATOR KIT

Pentair MasterTemp Gas Conversion Kit | Propane to Natural Gas | 250K BTU | New Style | 460742

PENTAIR 77707-0011 ADAPTER PLATE GASKET KIT

Pentair MasterTemp Tube Sheet Coil Assembly Kit | Model 250HDNA & 250HD-LP Cupro Nickel | After 1-12-09 | 474063
