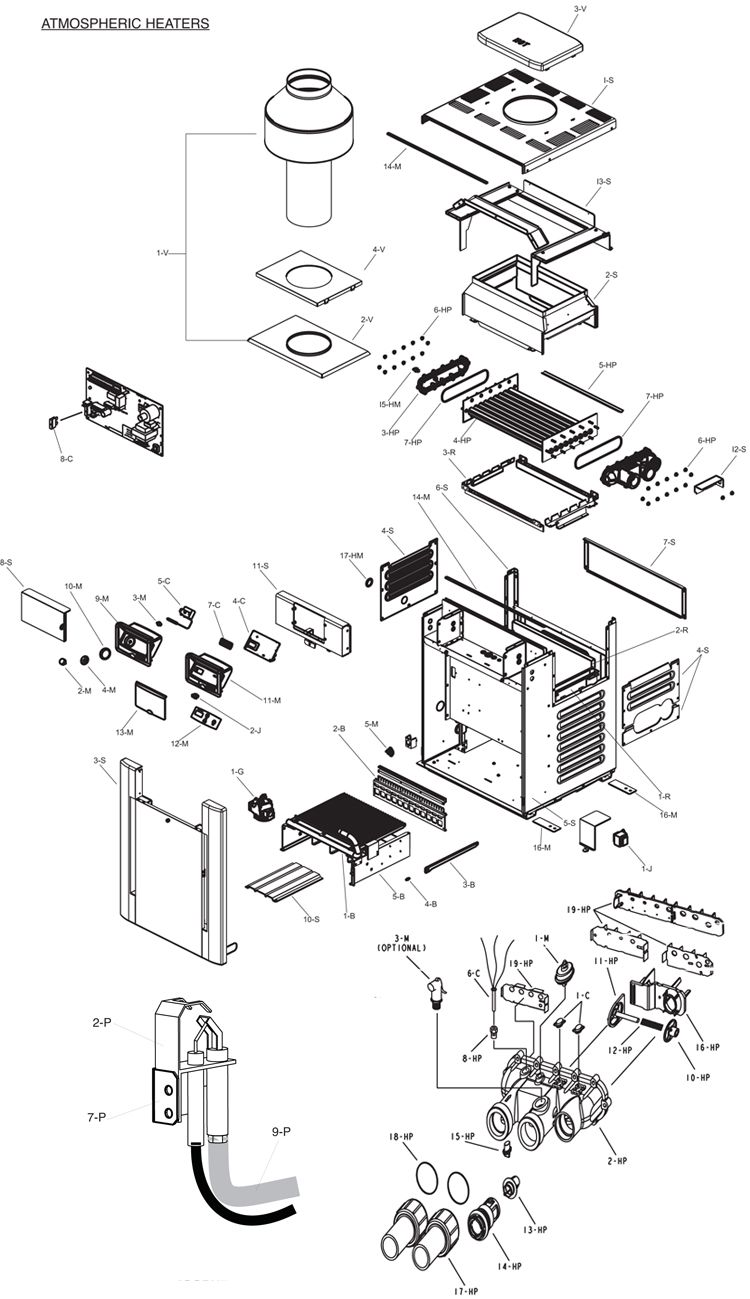

Raypak Digital Natural Gas Pool Heater 200k BTU | Electronic Ignition | P-R206A-EN-C 009216 P-M206A-EN-C 009962 Parts Schematic

1-B

Raypak Burner Tray with Gas Valve Propane IID 206A | 010411F

1-C

Raypak Auto Reset Thermostat 135 Degree Surface Mount | 006725F

2-C

Raypak High Limit Switch 135 Degree - Red Epoxy | 600892B

3-C

Raypak High Limit Switch 140 Degree - Black Epoxy | 600893B

4-C

Raypak PC Control Circuit Board IID Units R185A-R405A | 010253F

5-C

Raypak Mechanical Thermostat Control for Millivolt (Standing Pilot) Model Heaters | 003346F

6-C

Raypak Temperature Sensor for Electronic IID Digital Display Models | 009577F

7-C

Raypak LCD Display Board for New Style 206-408 Models Only | 013640F

1-G

Raypak Combination Gas Valve Natural Gas | 003898F

1-G

Raypak Combination IID Propane LP Gas Valve | 004306F

1-G

Raypak Combination Gas Valve Propane | 003899F

1-G

Raypak Combination Gas Valve Natural Gas Electronic IID 1/2" & 3/4" | 003900F

1-HP

010043F HEAT EXCH 206/207 POLYMER KIT

1-HP

010356F 208-207 HEAT EXCHANGER CUP-NIC

2-HP

Raypak In Out Capron Header Assembly with Gasket | 006827F

2-HP

Raypak In-Out Capron Header Assembly with Gasket | 006706F

3-HP

Raypak Return Capron Header Asembly with Gasket | 006707F

4-hp

Raypak Heat Exchanger Tube Bundle Copper 206 207 for Polymer Header Heaters | 010059F

4-HP

Raypak Heat Exchanger Tube Bundle Cupro Nickel 206 207 Polymer Header Heaters | 010364F

6-HP

Raypak Flange Nut Kit 1/4"-20 | 008259F

7-HP

Raypak O-Ring Gasket Set | 2 Included | 006713F

8-HP

Raypak Sensor Adaptor Digital Elect 006714F

8-HP

Raypak Sensor Well for Millivolt Models with Capron Header | 006805F

9-HP

Raypak Bypass Kit for Capron Headers | 006715F

10-HP

Bypass Valve Capron 006716F

11-HP

006717F BYPASS DAM/SHAFT CAPRON

12-HP

Raypak Bypass Spring Capron Headers | 006718F

13-HP

Raypak Unitherm Governor | Capron Header Models | 006719F

14-HP

Raypak Plug Unitherm Governor Capron | 006720F

15-HP

Raypak Drain Plug for Capron Headers | 006721F

17-HP

Raypak Heater Connector Set 2" PVC | Includes 2-Tail Pieces, 2-Nuts, 2-O'Rings | 006723F

18-HP

Raypak O-Ring Kit for 2" Connector 185-405, 206-406, 207-407 | 006724F

19-HP

Header Baffle Kit 185-405 006826F

17-HM

Raypak Rear Drain Plug & Cover 005264F

16-HM

Raypak Flange Gasket Set 2" Connections | 2-Gaskets per Set | 800080B

16-HM

Raypak Flange Gasket Set 1.5 Connections | 2-Gaskets per Set | 062236B

15-HM

Raypak Inlet & Outlet Flange Kit Bronze | 2-Bolts 2-Flanges 4- Gaskets (1.5" & 2") | 003766F

14-HM

Raypak Bulb Retainer Clip | 300203

13-HM

RAYPAK 003765F SENSOR WELL KIT VERSA

12-HM

RAYPAK 500719 DRAIN VALVE

11-HM

850252 BY PASS SPRING VERSA

10-HM

Raypak Bypass Valve 105A-405 206-407 | 062235B

9-HM

850254 UG RETAINER SPRING VERSA

8-HM

Raypak Unitherm Governor Versa & RP2100 Models | 062234B

7-HM

Raypak Header Gaskets | 9 Gaskets per Set | 800014B

4-HM

Tube Bundle Cupro 206/207 010368F

4-HM

Raypak Heat Exchanger Tube Bundle 206A 207A Copper ASME Commercial | 010055F

3-HM

Raypak Cast Iron Rear Header Assembly ASME | Gaskets Not Included | 006731F

2-HM

Raypak Inlet/Outlet Header ASME-CI 006730F

1-HM

010051F HEAT EXCH 206/207 CASTIRON KIT

1-J

Raypak Transformer IID Electronic Heaters 120V-240V Kit with Wire Harness | 006736F

2-J

Raypak Rocker Switch Digital Heaters | 009493F

1-M

Raypak Pressure Switch 1.75 PSI | 006737F

1-M

Raypak Heater Pressure Switch 11 PSI | 009133F

2-M

Raypak Heater Thermostat Knob | 009499F

5-M

Raypak Thermal Cutoff Fuse Versa RP2100 | 005899F

4-M

006886F 305138 KNOB STOP

6-M

RAYPAK 008091F 500648 PRV 125 PSI VERSA 105A/105B

7-M

052871F DELIMING KIT VERSA 105A/105B

8-M

010386F WIRE/HARNESS KIT MV 206-406ST

8-M

RAYPAK 009490F WIRE HARNESS IID R185B-R405B

9-M

009489F MV185B-405B CONTROL BEZEL 206-406 KIT

11-M

Raypak Control Bezel Assembly IID | 185B-405B, 206-406, 207-407 Models | 009491F

12-M

Raypak Switch Decal Membrane | 009492F

13-M

Raypak Control Bezel Cover Plate | Models 185B-405B, 206-406, 207-407 | 009487F

15-M

RAYPAK 750125 PAINT POWDER GREEN

15-M

RAYPAK 750126 PAINT CHARCOAL GREY

16-M

011636 (HURRICANE TIE DOWN) GAS HEATER RESTRAINT BRACKET

1-P

Raypak Pilot With Generator NG | 600525B

1-P

Raypak Pilot With Generator LP 600575B

2-P

Raypak Pilot Assembly for Electronic Units | Natural Gas & Propane Models | 002003F

3-P

Raypak Pilot Orifice Millivolt Natural Gas | 003901F

3-P

Raypak Pilot Orifice Millivolt Propane | 003902F

4-P

Raypak Pilot Orifice Natural Gas Electronic Ignition Heaters | 003903F

4-P

Raypak Pilot Orifice Propane Electronic Ignition Heaters | 004308F

5-P

Raypak Thermocouple 35 inch 750MV-Kit | 600019B

7-P

Raypak Pilot Mounting Bracket for IID Electronic Models 185B-405B | 306692

8-P

RAYPAK 062996 LIGHTER TUBE MV UNITS ONLY

9-P

Raypak Pilot Tube Assembly with Compression Ends | 004078F

10-P

Raypak High Tension Wire with Electrode | 007864F

1-R

Raypak 206A 266A 336A 406A Digital Heater Refractory Kit | Left Right 2 Pcs| 010088F

2-R

010089F REF UNCOMMON FRONT and REAR for 206

3-R

010387F REF RETAINER KIT 206

8-S

Raypak Rheem Poolstat Thermostat Cover and Lock Kit | 206-407 Models | 009505

1-V

Raypak Indoor Stack Top 206 & 207 Models | 6" Vent | 009838

1-V

Raypak Outdoor Stack 206 & 207 Models 6" Vent | 009834

17-M

Raypak Texas ASME Compliance Kit | Universal T&P Gauge Kit with Flow Switch | 013969

2-S

010071F FLUE COLLECTOR R206

2-V

Raypak Vent Adaptor Plate for 206-207 Heaters | 010330F

5-HP

010038F BAFFLE KIT R206
