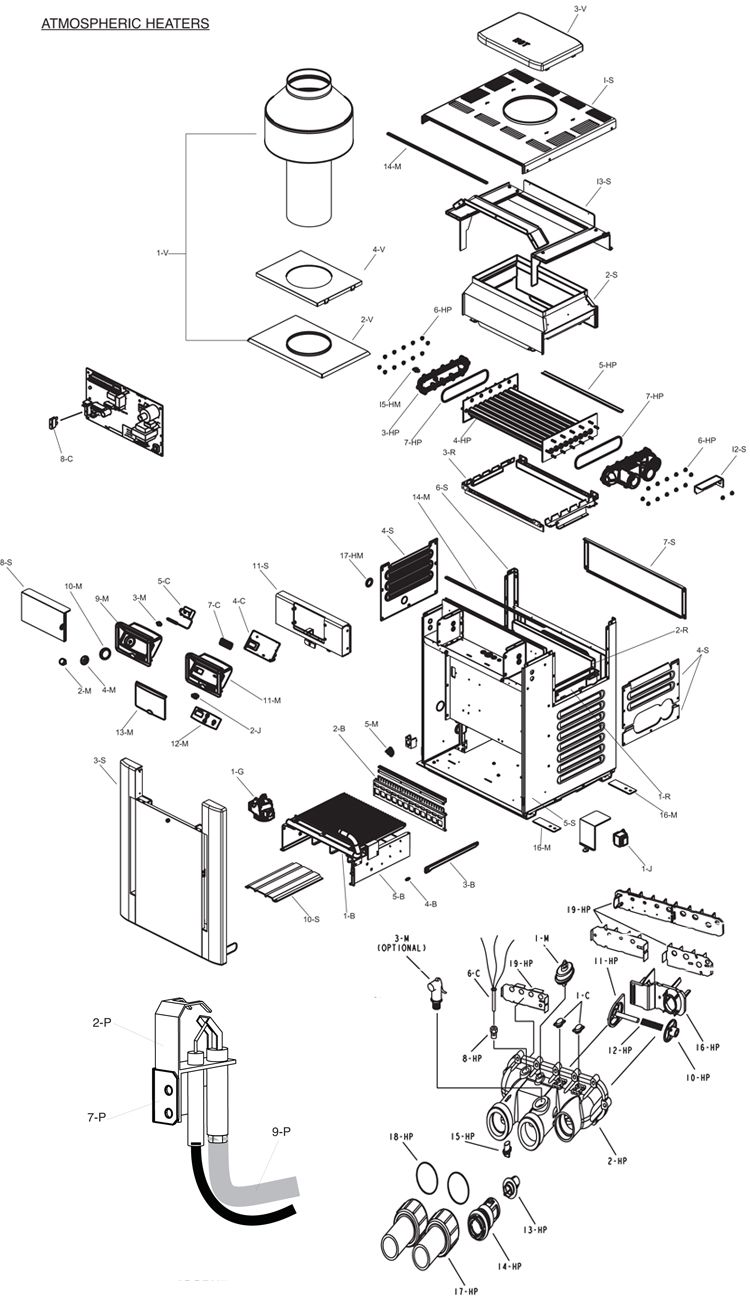

Raypak Digital Natural Gas Pool Heater 266k BTU | Electronic Ignition | P-R266A-EN-C 009217 P-M266A-EN-C 009963 Parts Schematic

1-B

010412F BURNER TRAY 266 W/VLV PIID KIT

3-B

Raypak Burner Only 301210

4-B

Raypak Burner Orifice Propane LP #57 | 350083F

4-B

Burner Orifice Ng #50 Versa 350079F

1-C

Raypak Auto Reset Thermostat 135 Degree Surface Mount | 006725F

2-C

Raypak High Limit Switch 135 Degree - Red Epoxy | 600892B

3-C

Raypak High Limit Switch 140 Degree - Black Epoxy | 600893B

4-C

Raypak PC Control Circuit Board IID Units R185A-R405A | 010253F

5-C

Raypak Mechanical Thermostat Control for Millivolt (Standing Pilot) Model Heaters | 003346F

6-C

Raypak Temperature Sensor for Electronic IID Digital Display Models | 009577F

1-G

Raypak Combination Gas Valve Propane | 003899F

1-G

Raypak Combination Gas Valve Natural Gas Electronic IID 1/2" & 3/4" | 003900F

1-G

Raypak Combination IID Propane LP Gas Valve | 004306F

1-G

Raypak Combination Gas Valve Natural Gas | 003898F

1-HP

010044F HEAT EXCH 266/267 POLYMER KIT

1-HP

010357F 266-267 HEAT EXCHANGER CUP-NIC

2-HP

Raypak In Out Capron Header Assembly with Gasket | 006827F

2-HP

Raypak In-Out Capron Header Assembly with Gasket | 006706F

3-HP

Raypak Return Capron Header Asembly with Gasket | 006707F

4-HP

Raypak Heat Exchanger Tube Bundle Copper 266 267 for Polymer Heads | 010060F

4-HP

Raypak Heat Exchanger Tube Bundle Cupro Plastic HDR PR265 A B PR266 267A | 010365F

5-HP

005261F BAFFLE KIT R265

6-HP

Raypak Flange Nut Kit 1/4"-20 | 008259F

7-HP

Raypak O-Ring Gasket Set | 2 Included | 006713F

8-HP

Raypak Sensor Adaptor Digital Elect 006714F

8-HP

Raypak Sensor Well for Millivolt Models with Capron Header | 006805F

9-HP

Raypak Bypass Kit for Capron Headers | 006715F

10-HP

Bypass Valve Capron 006716F

11-HP

006717F BYPASS DAM/SHAFT CAPRON

12-HP

Raypak Bypass Spring Capron Headers | 006718F

13-HP

Raypak Unitherm Governor | Capron Header Models | 006719F

14-HP

Raypak Plug Unitherm Governor Capron | 006720F

15-HP

Raypak Drain Plug for Capron Headers | 006721F

16-HP

Header Baffle Kit 185-405 006826F

17-HP

Raypak Heater Connector Set 2" PVC | Includes 2-Tail Pieces, 2-Nuts, 2-O'Rings | 006723F

18-HP

Raypak O-Ring Kit for 2" Connector 185-405, 206-406, 207-407 | 006724F

19-HP

Header Baffle Kit 185-405 006826F

1-HM

006727F HEAT EXCHANGER ASSY CI ASME

2-HM

Raypak Inlet/Outlet Header ASME-CI 006730F

3-HM

Raypak Cast Iron Rear Header Assembly ASME | Gaskets Not Included | 006731F

4-HM

Raypak Heat Exchanger Tube Bundle 266A 267A Copper ASME Commercial | 006733F

4-HM

Tube Bundle Cupro Metal HDR 010369F CR265A/B & PR266/277A

5-HM

005261F BAFFLE KIT R265

7-HM

Raypak Header Gaskets | 9 Gaskets per Set | 800014B

8-HM

Raypak Unitherm Governor Versa & RP2100 Models | 062234B

9-HM

850254 UG RETAINER SPRING VERSA

10-HM

Raypak Bypass Valve 105A-405 206-407 | 062235B

11-HM

850253 BY PASS SPRING 265A/405A

12-HM

RAYPAK 500719 DRAIN VALVE

13-HM

RAYPAK 003765F SENSOR WELL KIT VERSA

14-HM

Raypak Bulb Retainer Clip | 300203

15-HM

Raypak Inlet & Outlet Flange Kit Bronze | 2-Bolts 2-Flanges 4- Gaskets (1.5" & 2") | 003766F

16-HM

Raypak Flange Gasket Set 1.5 Connections | 2-Gaskets per Set | 062236B

16-HM

Raypak Flange Gasket Set 2" Connections | 2-Gaskets per Set | 800080B

17-HM

Raypak Rear Drain Plug & Cover 005264F

1-J

Raypak Transformer IID Electronic Heaters 120V-240V Kit with Wire Harness | 006736F

2-J

Raypak Rocker Switch Digital Heaters | 009493F

1-M

Raypak Pressure Switch 1.75 PSI | 006737F

1-M

Raypak Heater Pressure Switch 11 PSI | 009133F

2-M

Raypak Heater Thermostat Knob | 009499F

4-M

006886F 305138 KNOB STOP

5-M

Raypak Thermal Cutoff Fuse Versa RP2100 | 005899F

6-M

007224F 500038 PRV 125 PSI 261-401 & 263-403

7-M

052871F DELIMING KIT VERSA 105A/105B

8-M

RAYPAK 009490F WIRE HARNESS IID R185B-R405B

8-M

010386F WIRE/HARNESS KIT MV 206-406ST

9-M

009489F MV185B-405B CONTROL BEZEL 206-406 KIT

11-M

Raypak Control Bezel Assembly IID | 185B-405B, 206-406, 207-407 Models | 009491F

12-M

Raypak Switch Decal Membrane | 009492F

13-M

Raypak Control Bezel Cover Plate | Models 185B-405B, 206-406, 207-407 | 009487F

15-M

RAYPAK 750125 PAINT POWDER GREEN

15-M

RAYPAK 750126 PAINT CHARCOAL GREY

16-M

011636 (HURRICANE TIE DOWN) GAS HEATER RESTRAINT BRACKET

1-P

Raypak Pilot With Generator NG | 600525B

1-P

Raypak Pilot With Generator LP 600575B

2-P

Raypak Pilot Assembly for Electronic Units | Natural Gas & Propane Models | 002003F

3-P

Raypak Pilot Orifice Millivolt Natural Gas | 003901F

3-P

Raypak Pilot Orifice Millivolt Propane | 003902F

4-P

Raypak Pilot Orifice Natural Gas Electronic Ignition Heaters | 003903F

4-P

Raypak Pilot Orifice Propane Electronic Ignition Heaters | 004308F

1-R

Raypak 206A 266A 336A 406A Digital Heater Refractory Kit | Left Right 2 Pcs| 010088F

2-R

Raypak 266A Digital Heater Refractory Kit | Front Rear 2 Pcs | 010090F

3-R

010388F REF RETAINER KIT - 266
